how to clean ap spray gun

Used for one of the raw materials of polyurethane isocyanate in the temperature is too low when it is easy to crystallize, which leads to the spray agent and spray paint easily clogged, all we must be cleaned every time we finish using the spray gun, the following is a tutorial for disassembly:

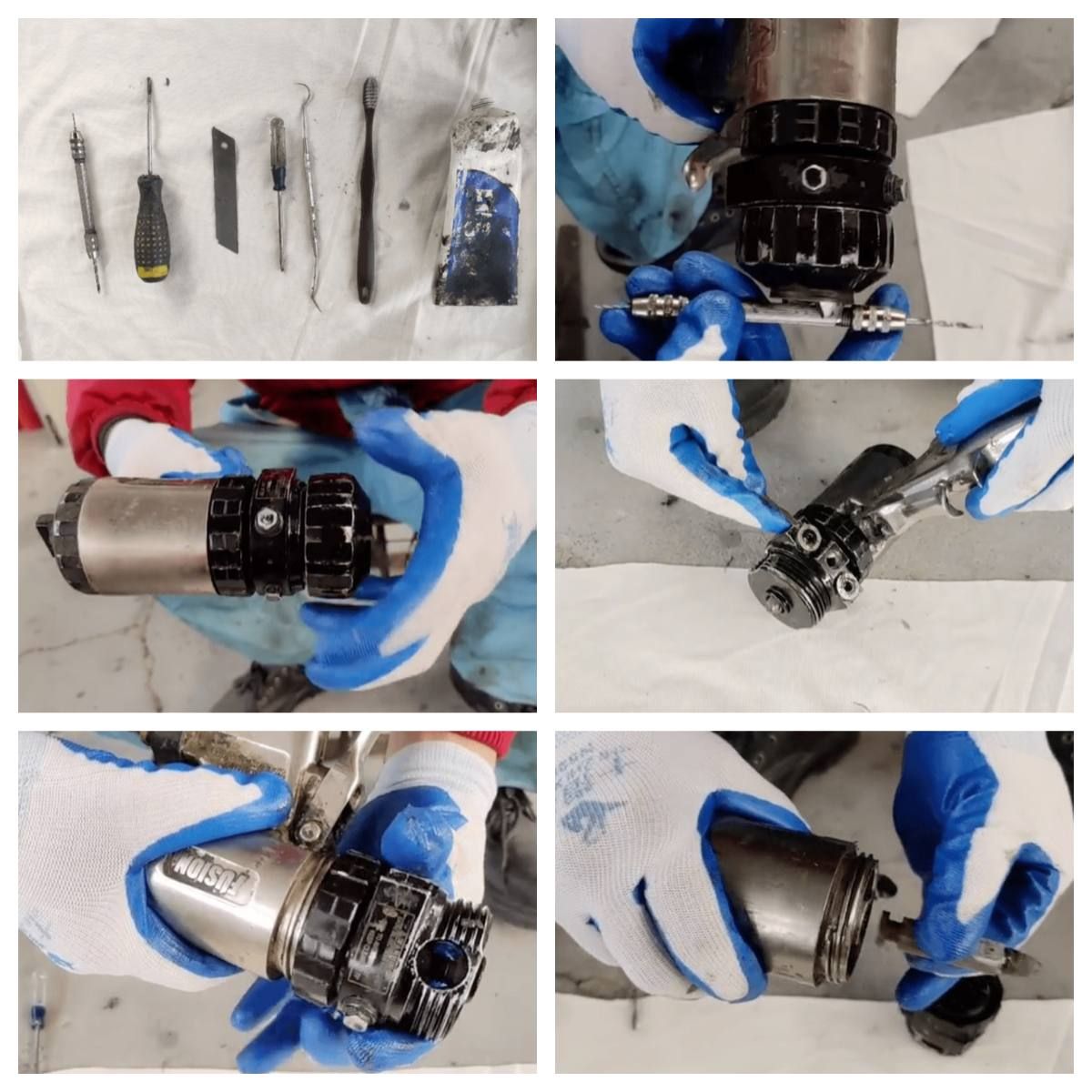

1. Preparation tools: drill, dental hook, toothbrush, small one screwdriver, wallpaper cutter, grease, etc.

2. Disassemble the air cylinder

2. Remove the locking ring

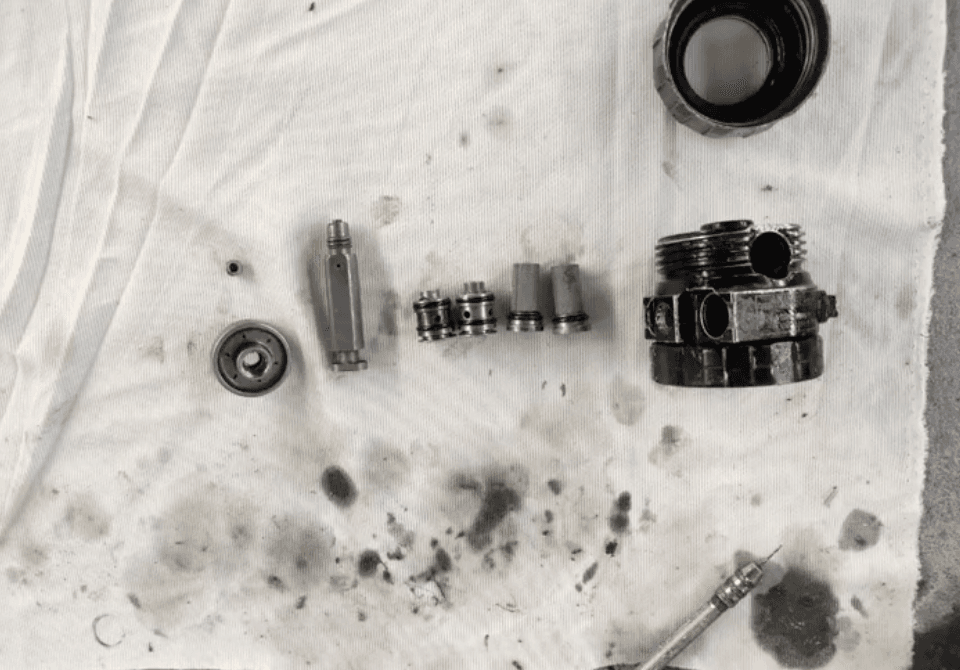

3. Disassemble the sealing group and check valve assembly on both sides of A/B (including: screws, springs, steel balls, screens)

4. Disassemble the gun head and hybrid

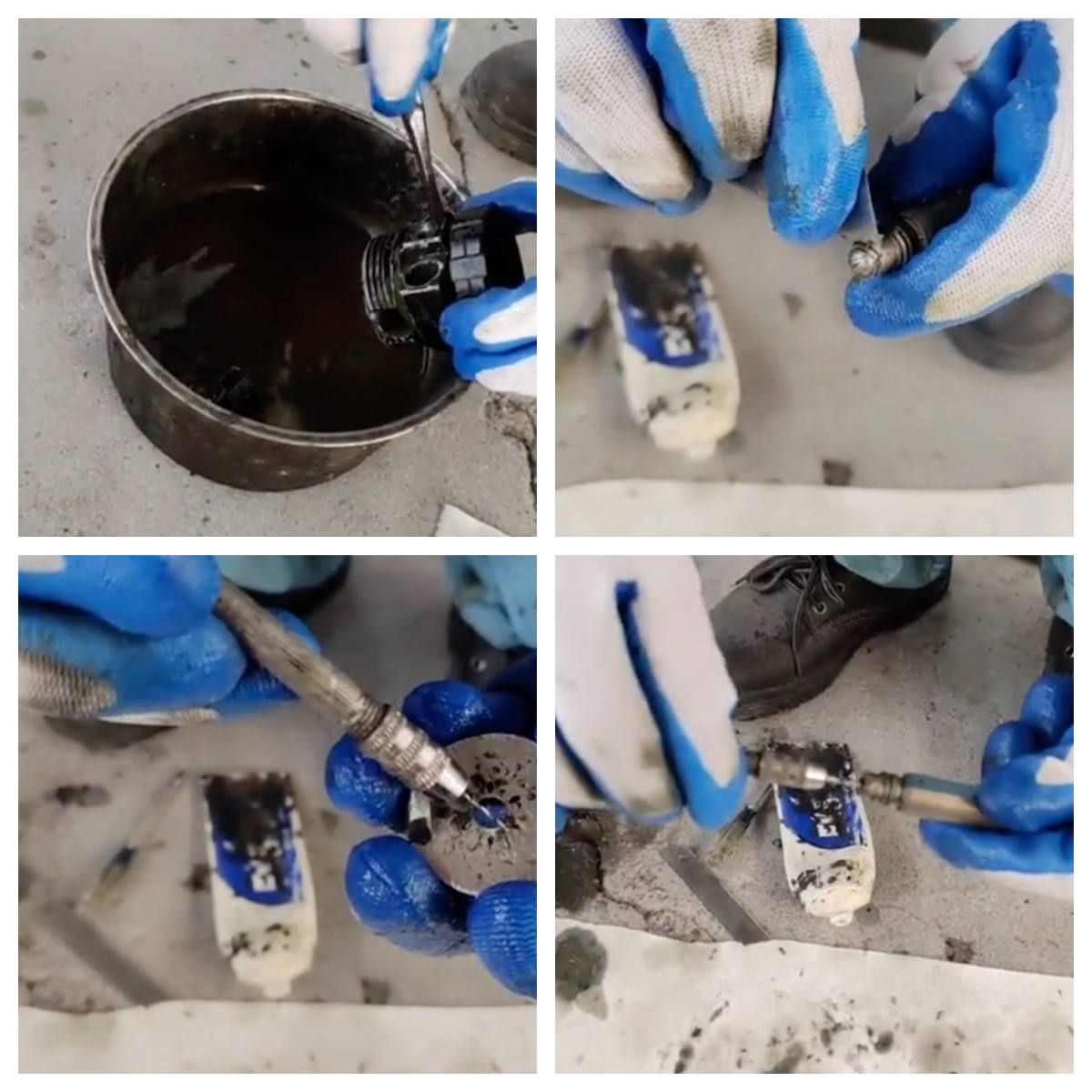

Cleaning:

1. Clean the gun head channel with special cleaning solution.

2. Clean the disassembled screws, springs, steel balls, screens

3. Use a drill to clean the mixing chamber and the air outlet holes

4. Clean the nozzle with a brush.

5. Wipe it clean with a cloth.

Note: In the process of cleaning, be sure to check all the rubber sleeve there is no aging, leakage of material.
