Small Polyurethane Foam Machine XL-E2MINI

Small Polyurethane Foam Machine XL-E2MINI

Cold storage wall insulation polyurethane spraying machine, the product is mainly exported in large quantities, exported to Canada, Egypt, Saudi Arabia

input voltage:220V single-phase, 220V three-phase, 380V three-phase
Power (kW):10
Maximum working pressure: 23MPa (230 bar)
maximum output:2 - 6kg/min
Sample Price:USD $3500-4200
Min. Order:1 pieces

Product Details

Important attributes

Video Factory Inspection
available
Mechanical test report
available
input voltage
220V single-phase, 220V three-phase, 380V three-phase
warranty period
biennial
Weight (KG)
280 KG
place of origin
Shandong, China
Dimensions (L×W×H)
75*70 * 80CM
Type of marketing
New Products 2021
Provide after-sales service
Video Technical Support
accreditation
ce
Ratio between A and B
1:1
Viscosity range of raw materials
200-1000cps (at operating temperature)
core component
Bearings, Motors, Pumps, Gears, PLC, Others, Pressure Vessels, Engines, Gearboxes
Heated hose length
Standard 45 meters (customizable to 60 meters)
Heater power
3000W×2
air supply
0.25m³/min

standard configuration

hosts
1 set
Spray gun (P2 type)
1 set
transfer pump
2 sets
Heated hoses
15 meters (49.2 feet)
Supply pipe (from transfer pump to mainframe)
2 (1.5 m)
Whip Hose
1 root
air duct
1 set
Tools and spare parts
1 set
English User Manual
1 set

Packaging and shipping information

sales unit
Single item
port of embarkation
Qingdao

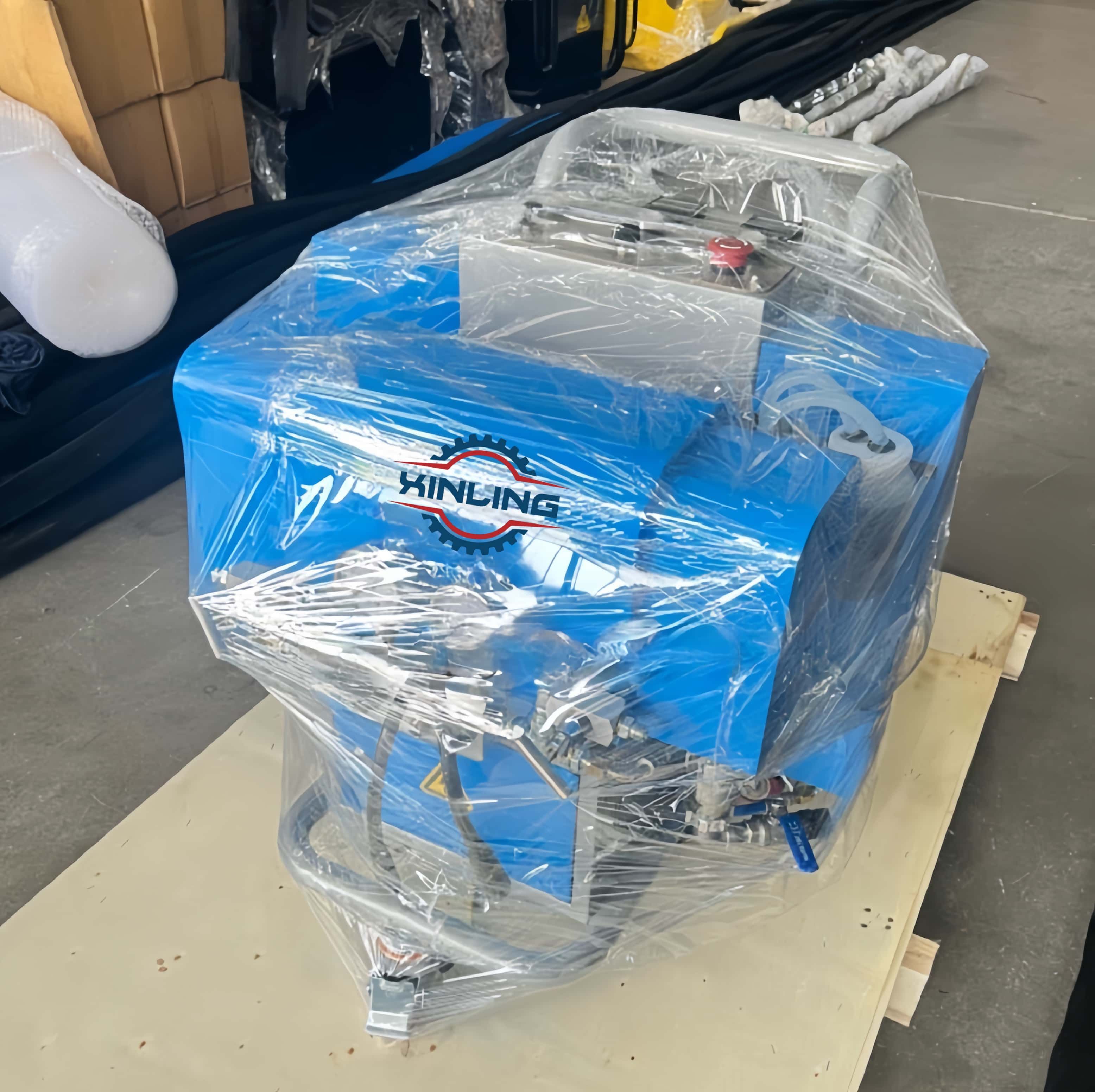

Packaging Details
In a wooden box

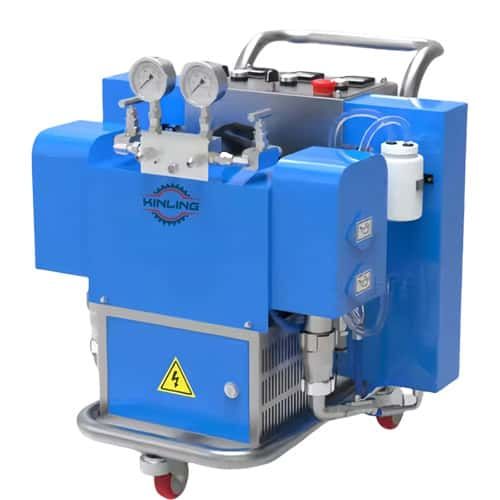

Electric Polyurea/Polyurethane Sprayer XL-E2min

This mini polyurea sprayer offers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through narrow doorways makes it an excellent machine for indoor demolition jobs.

Ideal for waterproofing and spraying home swimming pools. The body is lightweight, flexible and mobile enough to fit in the trunk of your car.

Product Specifications


1

New Small Electric Polyurea Sprayer

The weight of the whole machine is only 95kg, it can spray polyurea, the heating hose is fast, and the independent return system can circulate the heating material.

2

Scope of application

Entry level system for pure and mixed polyurea coatings. Ideal for small to medium sized projects such as decks, swimming pools, balconies, water tanks, truck bed liners, secondary protection and waterproofing.

3

Quality Assurance

Electronic components and seals are imported brands, stable and not easy to break in long term use.

FD-E2min细节展示

4

Convenient Features

Through the standard doorway, inserted into the standard 220V socket, equipped with sturdy wheels for extreme workplaces; no need for generator (motor required), self-priming raw materials, no need to match the large air compressor, suitable for home use.

5

Safety

Heated hose with voltage protection to ensure electrical safety.

7

Compatibility

The spray gun and heated hose can be used with GRACO.
