Graco Spray Foam Machine Model List

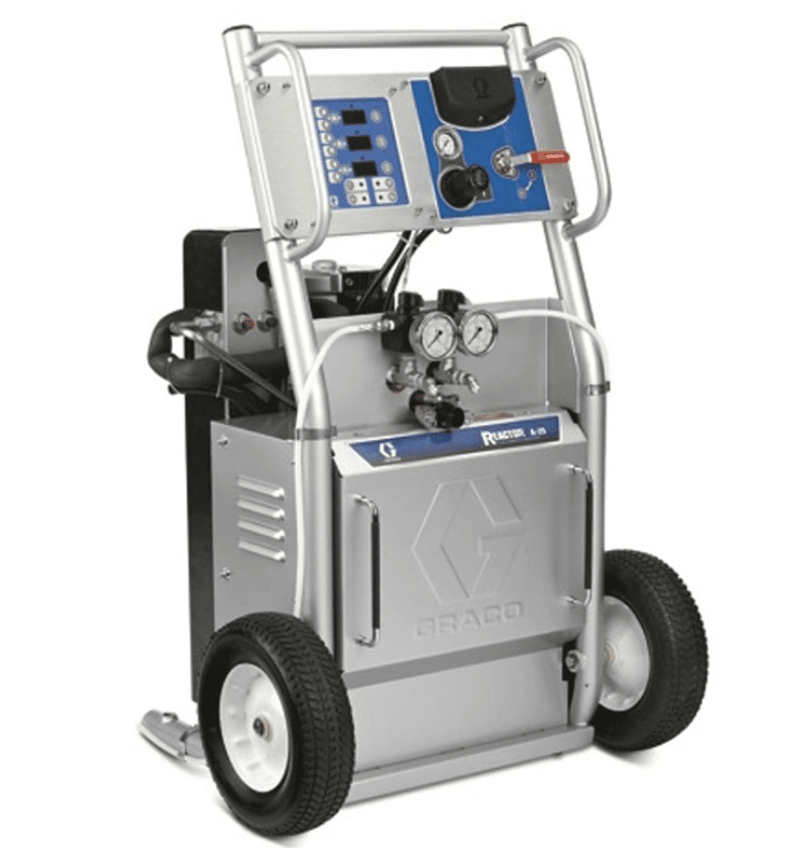

A25

The Reactor A-25 is a Graco-designed foam dispenser that provides reliable performance in the work area, even at maximum flow rates, while maintaining consistent temperature control for improved foam quality. It maintains a temperature set point for increased throughput, consistent output pressure for uniform spray patterns, and ease of operation and maintenance, making it a quality choice for both affordability and durability.

Specifications include model A-25, 2000 psi (138 bar, 13.8 MPa) maximum working pressure, 28 scfm air consumption at 100 psi, minimum working pressure N/A, 210 ft (64 m) maximum pipe length, 190°F (88°C) maximum fluid temperature, 25 lb (11.4 kg)/min output, and 250 lb (250 kg)/min weight. min, weighs 250 lb (113 kg), and is equipped with a 3.0/6.0 kW heater.

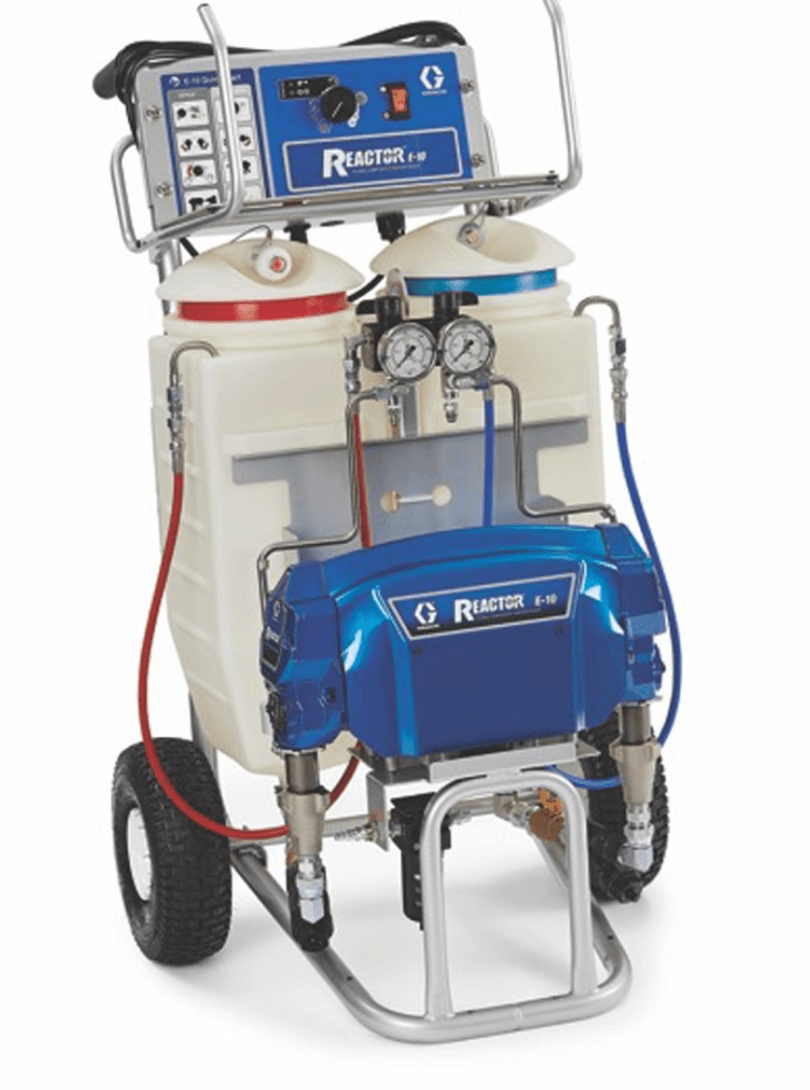

E10

Graco's Reactor E-10 is a compact, ready-to-use system that facilitates quick turnaround on small jobs. It comes with an intelligent controller that is easy to install and operate, and can be used as a complementary unit to the proportioning equipment it is connected to. It is portable on the job site, making it ideal for spraying hard-to-reach areas; can be operated by a single person, saving time and money; can be used as an add-on to an existing spray operation; is versatile enough to cover cold, hot and foam spraying; and can save up to 30 percent in coating costs compared to disposable foam systems.

Maximum working pressure is 2000 psi (138 bar, 13.8 MPa), maximum pipe length is 105 ft (32 m), maximum fluid temperature is 160°F (71°C), output is 12 lb (5.4 kg)/min, and weight after heating is 160 lb (72 kg).

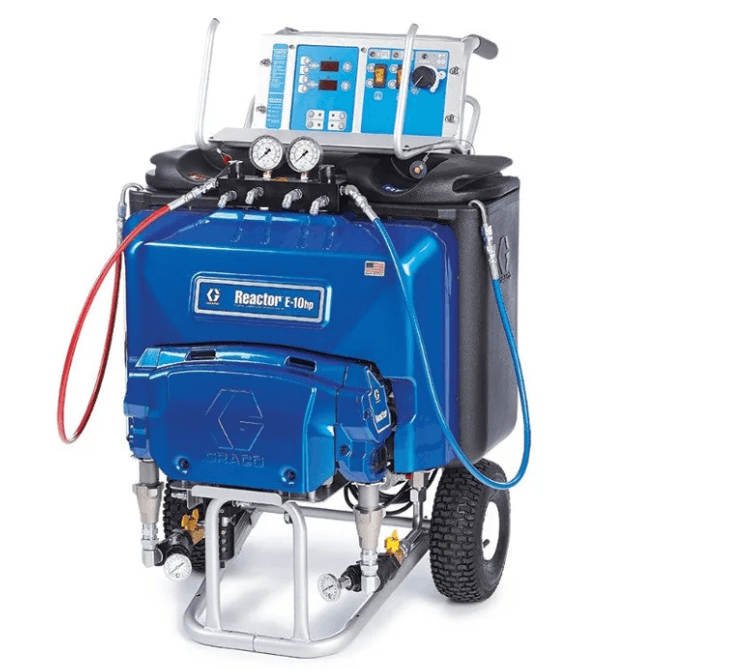

E10Hp

This is the entry-level system for pure polyurea and semi-polyurea coatings, suitable for small to medium-sized projects such as decks and pools. The material heats up quickly and is portable enough to be connected to a residential outlet, eliminating the need for a generator and making the investment more economical. Available in 230V and 120V, the units are rated at 3000 psi, 1 gpm max flow rate, 170°F max fluid temperature, 6 gal hopper capacity, 105 ft max hose length, 29x36x46 in dimensions, and 239 lb weight.

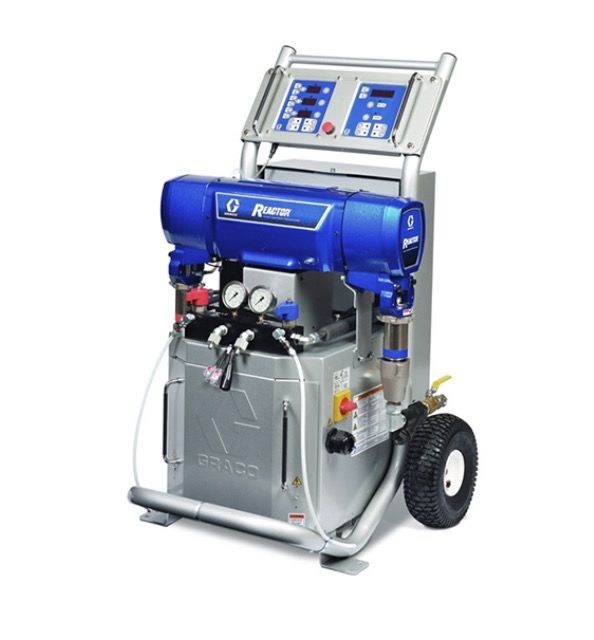

E-20 / E-30

E-20 Introduction: The Graco Reactor E-20 proportioner features paint data and system diagnostics for total control of spray foam insulation. It features a powerful mixing heater for better temperature control, a recirculation valve with long-lasting seals with a long-lasting modular heater control panel to minimize downtime, a hose heat exchanger that requires no tap setup and is easy to move, a pump lower that can be quickly disassembled for easy maintenance, and a digital controller for heat and pressure.

Maximum working pressure is 2000 psi (138 bar, 13.8 MPa), minimum working pressure N/A, maximum pipe length 210 ft (64 m), maximum fluid temperature 190°F (88°C), output 20 lb (9 kg)/min, weight 342 lb (155 kg).

Introducing the E-30: The Graco Reactor E-30 Proportioner also features paint data and system diagnostics for total control of spray foam insulation. It features a powerful mixing heater for better temperature control, recirculation valves with long-lasting seals, long-lasting modular heater control panels for reduced downtime, a hose heat exchanger that eliminates the need for a tap setup, easy mobility of the unit, a pump lower that can be quickly disassembled for ease of maintenance, and a digital controller for heat and pressure.

Maximum working pressure is 2000 psi (138 bar, 13.8 MPa), minimum working pressure N/A, maximum pipe length 310 ft (94 m), maximum fluid temperature 190°F (88°C), output 30 lb (13.6 kg)/min, weight 400 lb (181 kg).

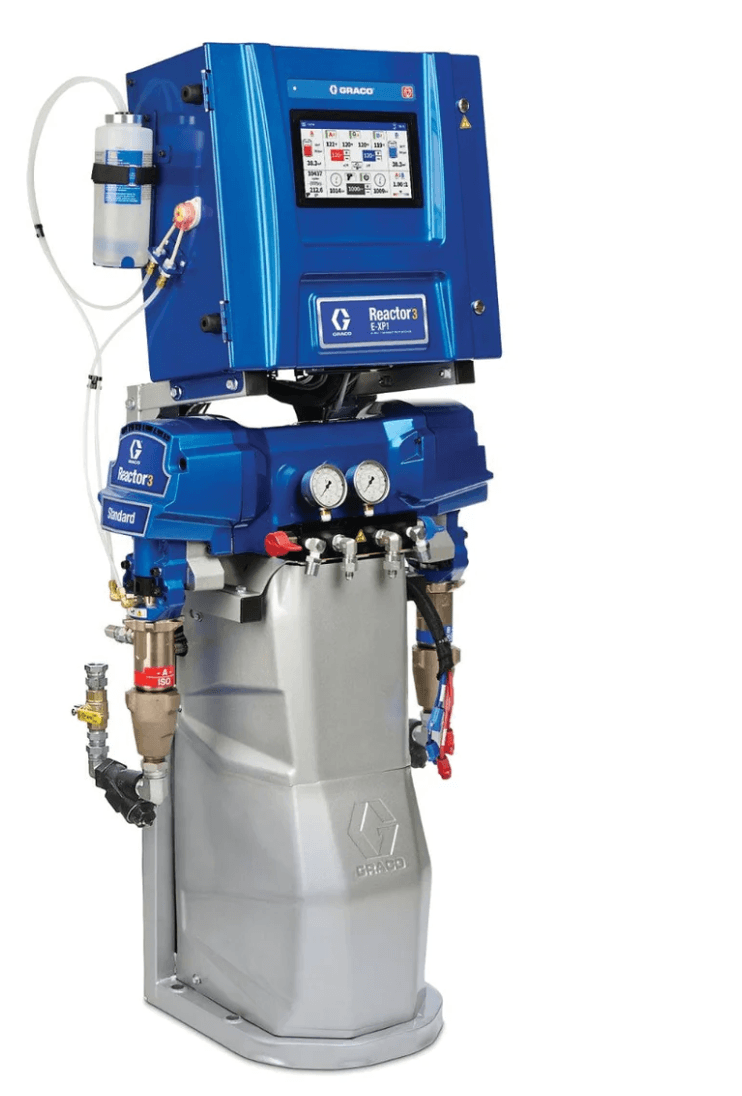

E - XP1 / E - XP2

The Graco Reactor E-XP1 proportioner is designed for the treatment and application of high pressure coatings such as polyurea. Featuring a 10.2kW heater, a wide range of voltages, and ordering options for bare metal and different guns (AP, P2), the E-XP1 combines power and flexibility.

Maximum working pressure 2500 psi (172 bar, 17.2 MPa), maximum pipe length 210 ft (64 m), maximum fluid temperature 190°F (88°C), output 1.0 gpm (3.8 lpm), and weight 342 lb (155 kg).

The Graco Reactor E-XP2 proportioner is also suitable for high-pressure coating scenarios. With a 15.3kW heater, a wide range of voltage types, and bare metal and AP and P2 gun ordering options, the XP2 provides an advantage in operational efficiency and range of applications.

Maximum working pressure 3500 psi (240 bar, 24.0 MPa), maximum pipe length 310 ft (94 m), maximum fluid temperature 190°F (88°C), output 2.0 gpm (7.6 lpm), weight 438 lb (199 kg).

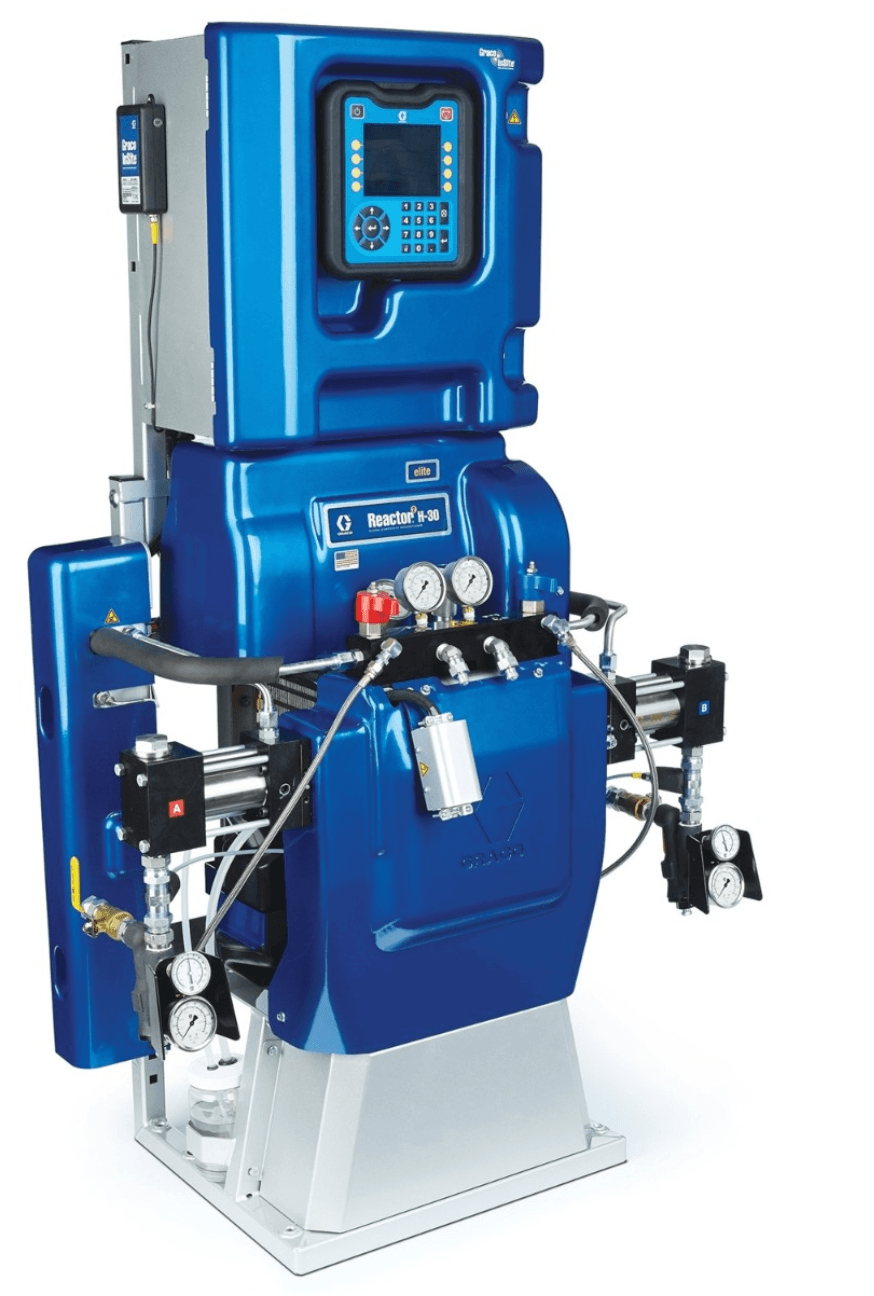

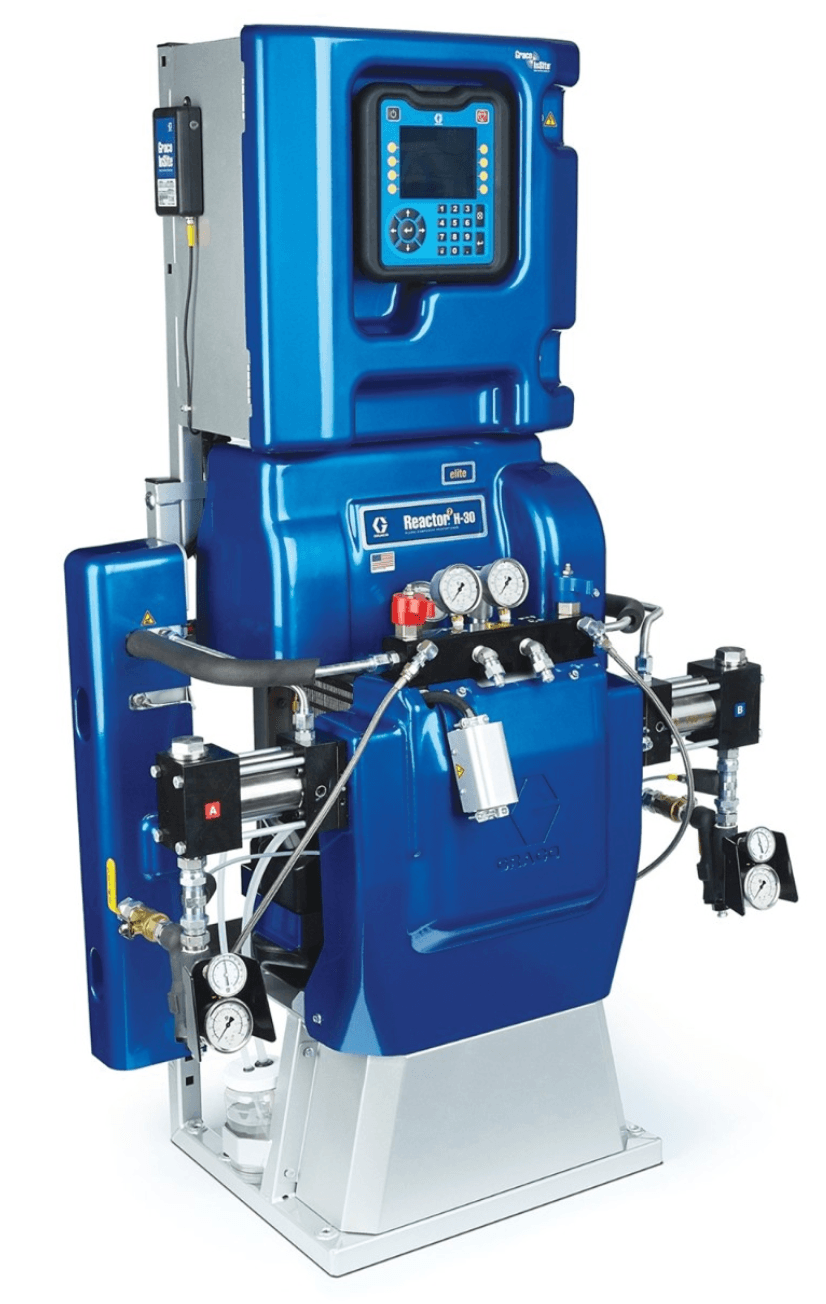

H25 / H40 / H50

Graco's line of Reactor hydraulic foam proportioners provide reliability and power for everything from residential foam insulation projects to large-scale commercial roofing operations.

The Reactor H-25 is an entry-level but powerful machine with a maximum output of 22 pounds (10 kg) per minute; the Reactor H-40 is geared toward high-volume applications with an even faster output of 45 pounds (20 kg) per minute; and the Reactor H-50 is Graco's most powerful foam proportioner with a maximum output of 52 pounds (23.6 kg) per minute.

The series features digital heat and pressure controllers to program temperature and pressure and monitor performance; horizontal displacement pumps for easy maintenance and smoother changeover to maintain optimal spray pattern; and powerful mixing heaters to quickly heat up the material and maintain a consistent temperature for high volume spraying.

Specifications for the H-25 include a maximum working pressure of 2000 psi (138 bar, 13.8 MPa), a minimum working pressure of 850 psi (59 bar, 5.9 MPa), a maximum pipe length of 310 ft (94 m), a maximum fluid temperature of 190°F (88°C), and an output capacity of 22 lb (10 kg)/min, with weights available with different power and mixing heater values. Heaters are available in a variety of values, and a wide range of ordering options for heaters, lances, and more are available.

H-40 Maximum working pressure 2000 psi (138 bar, 13.8 MPa), minimum working pressure 600 psi (41 bar, 4.1 MPa), maximum pipe length 410 ft (125 m), maximum fluid temperature 190°F (88°C), output 45 lb (20 kg)/min, weight 597 lb (271 kg). Multiple ordering options are also available.

The H-50 has a maximum working pressure of 1700 psi (117 bar, 11.7 MPa) at 1-ph and 2000 psi (138 bar, 13.8 MPa) at 3-ph, a minimum working pressure of 600 psi (41 bar, 4.1 MPa), a maximum pipe length of 410 ft (125 m), a maximum fluid temperature of 190°F (88°C), and a maximum output of 52 lb (20 kg)/min. ), output 52 lb (23.6 kg)/min.
