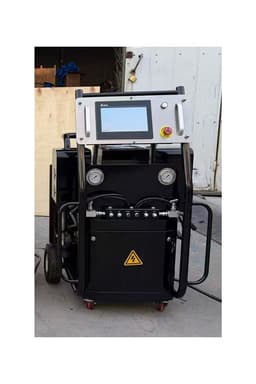

High‑power dual‑gun electric polyurethane spray machine FD‑E30 PRO

High‑power dual‑gun electric polyurethane spray machine FD‑E30 PRO

High‑power dual‑gun electric polyurethane/polyurea spraying machine that can replace hydraulic equipment, with quantitative filling function. High power, compact and flexible.

Maximum working pressure:23MPa (230 bar)
input voltage:220V 3-phase / 380V 3-phase/220V 1-phase/1101-phase
power (output):21KW
maximum output:2-24kg/min
Min. Order:1 pieces

Product Details

Important attributes

Video Factory Inspection
available
Mechanical test report
available
warranty period
biennial
Weight (KG)
260KG
place of origin
Shandong, China
Dimensions (L×W×H)
730*735*1132mm
Viscosity range of raw materials
200-1000CPS (at working temperature)
Single heater power
6000W×2
Maximum heated hose length
Standard 60 Meters(EACH) ( up to 75 meters)
air supply
≥0.25m³/min

standard configuration

mainframe
1 set
spray gun(P2)
2set
Transfer pump(A+B)
1 set
Heated hose
15m(49.2ft)*2
Supply hose (From the transfer pump to machine)
2 pcs (3 meters)
Whip hose
2 pcs
Air pipe
1 set
Tools and spare parts
1 set
English user manual
1 set

Dual‑gun Electric Polyurethane/Polyurea Sprayer FD-2E PRO



FD-2E PRO Electric Polyurea Spray Foam Insulation Machine is a cost-effective two-component spraying equipment benchmarked against Graco Reactor E-XP2 Elite Level Proportioning System, specially designed for the accurate spraying of fast-curing materials such as polyurea and polyurethane. Adopting electric drive to replace the traditional hydraulic system, on the basis of the continuation of the core proportioning technology of E-XP2, with 23MPa high pressure output, 120 meters of extra-long hose adaptation and  24kg/min large flow rate performance as the core advantage, to strengthen the adaptability of medium and large-scale projects and construction flexibility, and to become the preferred equipment for the scenarios of long-distance pipeline anticorrosion, waterproof and heat preservation of a large area, and other scenarios.



Features:

The system can support 2 workers to do spray jobs same time to improve the working speed and efficiency. We have hydraulic and electric machines for choice.
1. Dual gun or single gun working mode;
2. It can keep double sides pressure balance;
3. It can support 2 workers to do spray jobs same time to improve the working speed and efficiency.
4. Crank connecting rod transmission device guarantees 96% mechanical efficiency with almost no loss.
5. Save electricity by more than 40% and save electricity costs.
6. Electric drive machine only need to work with one smaller air compressor: 0.25m3/min air delivery, 0.8mpa working pressure.
7. The complete spray system is easier to move to different constuction site.


Packing & Delivery
Double gun polyurea spray machine standard configuration includes:

1set main machine, 2*15m heating/heated hose, 2sets spray gun, 2pcs transfer pump and 1pc accessories box. It is packed in one wooden box for shipping.
