High-power hydraulic dual-gun spray foam machine XL-511 PRO

High-power hydraulic dual-gun spray foam machine XL-511 PRO

Upgrade for FD-511, is a high-power dual-gun spray foam machine, a device can drive two guns, and can not interfere with each other, dual-gun simultaneous work to save efficiency!

input voltage:220V three-phase, 380V three-phase
Power (kW):21KW
work pressure:25MPa (250 bar)
maximum output:2 - 24 kg/min
Sample Price:USD $9000-9999
Min. Order:1 pieces

Product Details

Important attributes

Video Factory Inspection
available
Mechanical test report
available
Core Selling Points
Dual Gun Simultaneous Operation
warranty period
biennial
Weight (KG)
280 KG
place of origin
Shandong, China
Dimensions (L×W×H)
1009×635×1231mm
core component
Bearings, Motors, Pumps, Gears, PLC, Others, Pressure Vessels, Engines, Gearboxes
Foam gun type
Spray/Injection
Power (kW)
21kw
Maximum Heater Hose
90*2
Ratio between A and B
1 : 1
Conveying Hose
1.5m (5 feet)
Than A and B
1 : 1
material temperature
88 °C (190 °F)
Air pressure requirements
≥0.25m³/min

standard configuration

hosts
1 set
Spray gun (P2 type)
2 sets
transfer pump
2 sets
Heated hoses
15 meters (49.2 feet)
Supply hose (from transfer pump to mainframe)
2 (1.5 m)
Whip Hose
1 root
air duct
1 set
Tools and spare parts
1 set
English User Manual
1 set

Packaging and shipping information

sales unit
Single item
Packaging Details
In a wooden box
Packaging Details
In a wooden box

Dual Gun Foamer FD-511 Pro

Hydraulic Dual Gun Foam Machine designed for applications in the urethane/polyurea industry including, but not limited to, insulation, waterproofing, and coatings. The machine's dual gun configuration significantly enhances productivity by allowing simultaneous spraying from both guns, effectively doubling output without compromising quality. This feature is especially beneficial for large projects where time is of the essence, as it reduces overall application time while maintaining consistent and uniform coverage, the FD-511Pro has the following advantages:

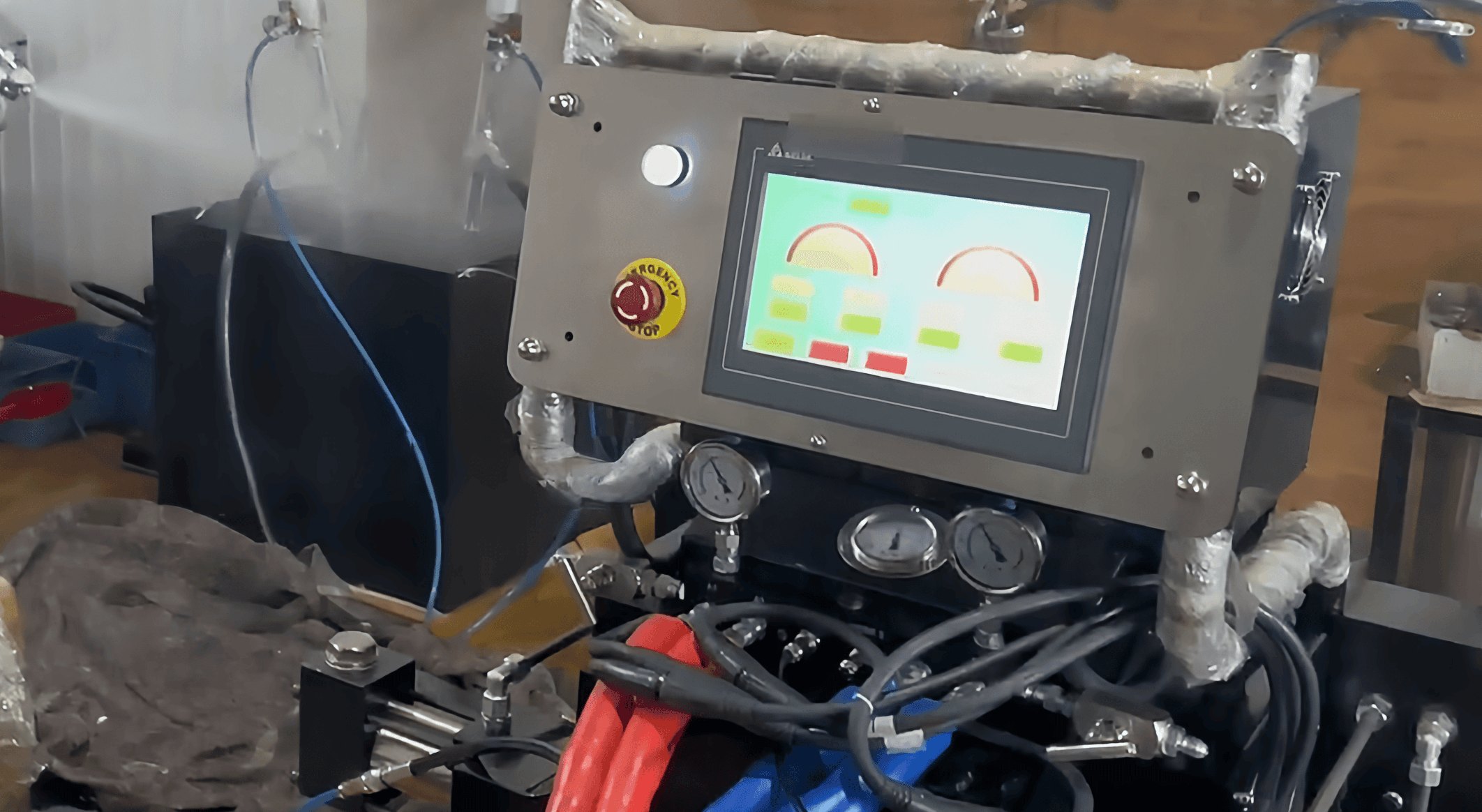

01 Control Panel
Touch screen control panel for quick and easy selection and control of all job parameters. An advanced alarm system alerts you to any errors during the production process to ensure proper product usage.

  • Touch screen

  • Professional software

  • Comprehensive control

  • Fault Alarm


02 Proportioning pumps
Double-acting hydraulic cylinders drive two directly opposing chemical proportioning pumps, eliminating asymmetric loading and ensuring long pump seal life, while ensuring constant, stable pressure for perfect chemical mixing.


  • Hydraulic drive

  • Pressure stabilization


03 Hose heating system
The 4000W isolation transformer is designed to heat two gun hoses at the same time over a distance of up to 94 meters. Copper resistance elements are evenly distributed around the hose to precisely and exclusively control the application temperature of the hose, avoiding the concentration of heat that occurs in traditional hose manufacturing.



  • 4000W isolation transformer

  • Heating distance up to 94 meters

  • Perfect mixing

  • Precise temperature control

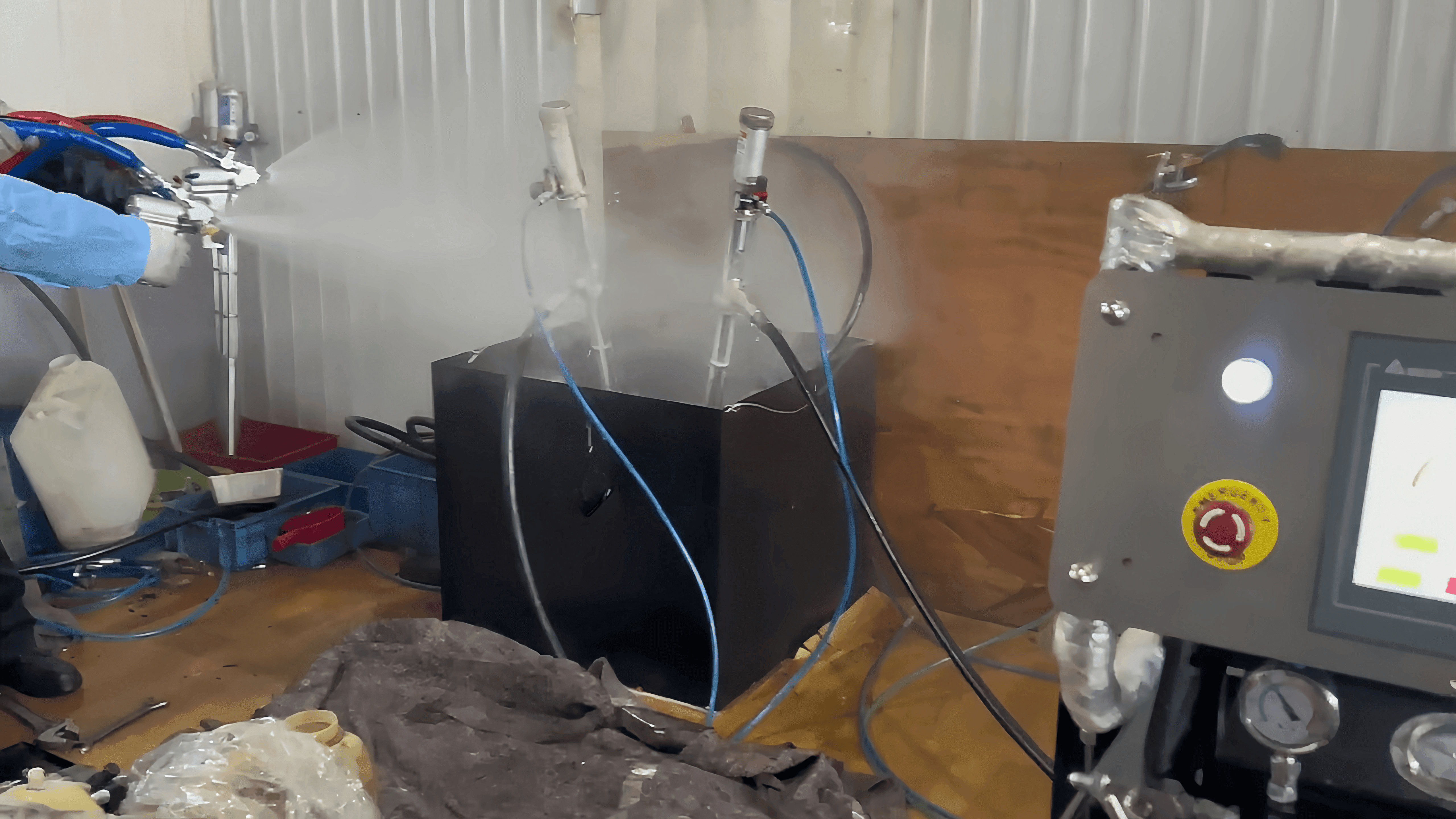

04 New system of two guns
The two spray guns form a complementary interference pattern, which automatically adjusts the pressure device according to the use of the spray gun to keep the pressure stable. Using two guns at the same time improves the working efficiency and increases the coverage area.



  • Two guns working at the same time

  • Improved efficiency

  • Stabilized operation
