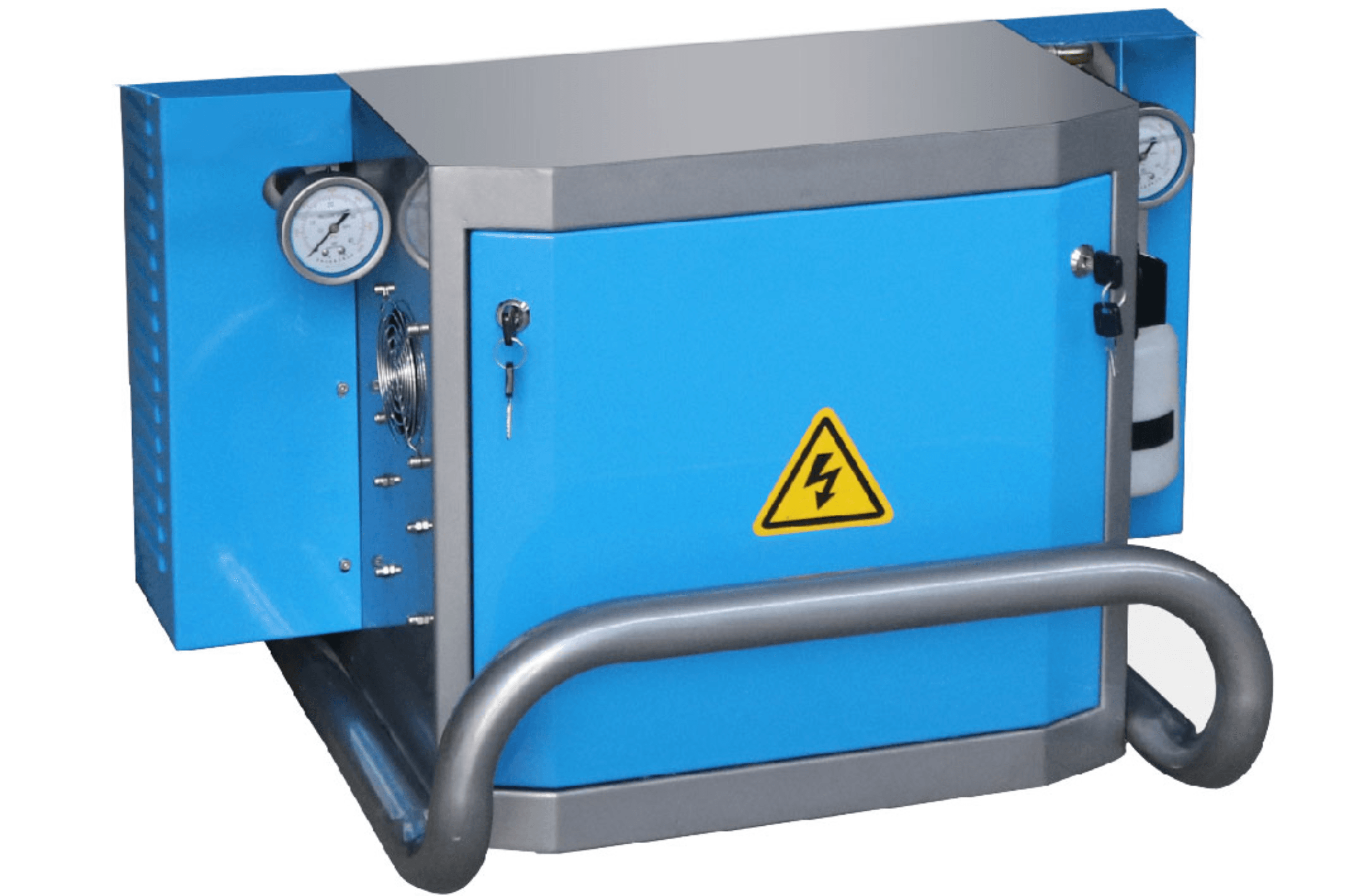

Small hydraulic foam sprayer FD-211 PRO

Small hydraulic foam sprayer FD-211 PRO

High-end customized small hydraulic polyurethane spraying machines, which are mainly exported to Canada and the United States of America

Power (kW):15000W
maximum output:20 kg/min
Maximum working pressure:23MPa (230 bar)
Power of the whole machine:15KW
Min. Order:1 pieces

Product Details

Important attributes

Video Factory Inspection
available
Mechanical test report
available
Core Selling Points
Long service life
warranty period
1 year
Weight (KG)
250KG
place of origin
Shandong, China
Dimensions (L×W×H)
1009×735×1216mm
core component
Bearings, motors, pumps, gears, PLC, engines, hydraulics
color
Custom Colors
Maximum Fluid Temperature
88 ° C (190 ° F)
Heater power
6000W×2
Maximum heated hose length
Standard 60 meters (customizable to 90 meters)
air supply
≥0.25m³/min

Packaging and shipping information

sales unit
Single item
port of embarkation
Qingdao
Packaging Details
In a wooden box

standard configuration

hosts
1 set
Spray gun (P2 type)
1 set
transfer pump
2 sets (E10HP not included)
Heated hoses
15m (49.2ft)
Supply pipe (from transfer pump to mainframe)
2 (1.5 m)
Whip Hose
1 root
air duct
1 set
Tools and spare parts
1 set
English User Manual
1 set

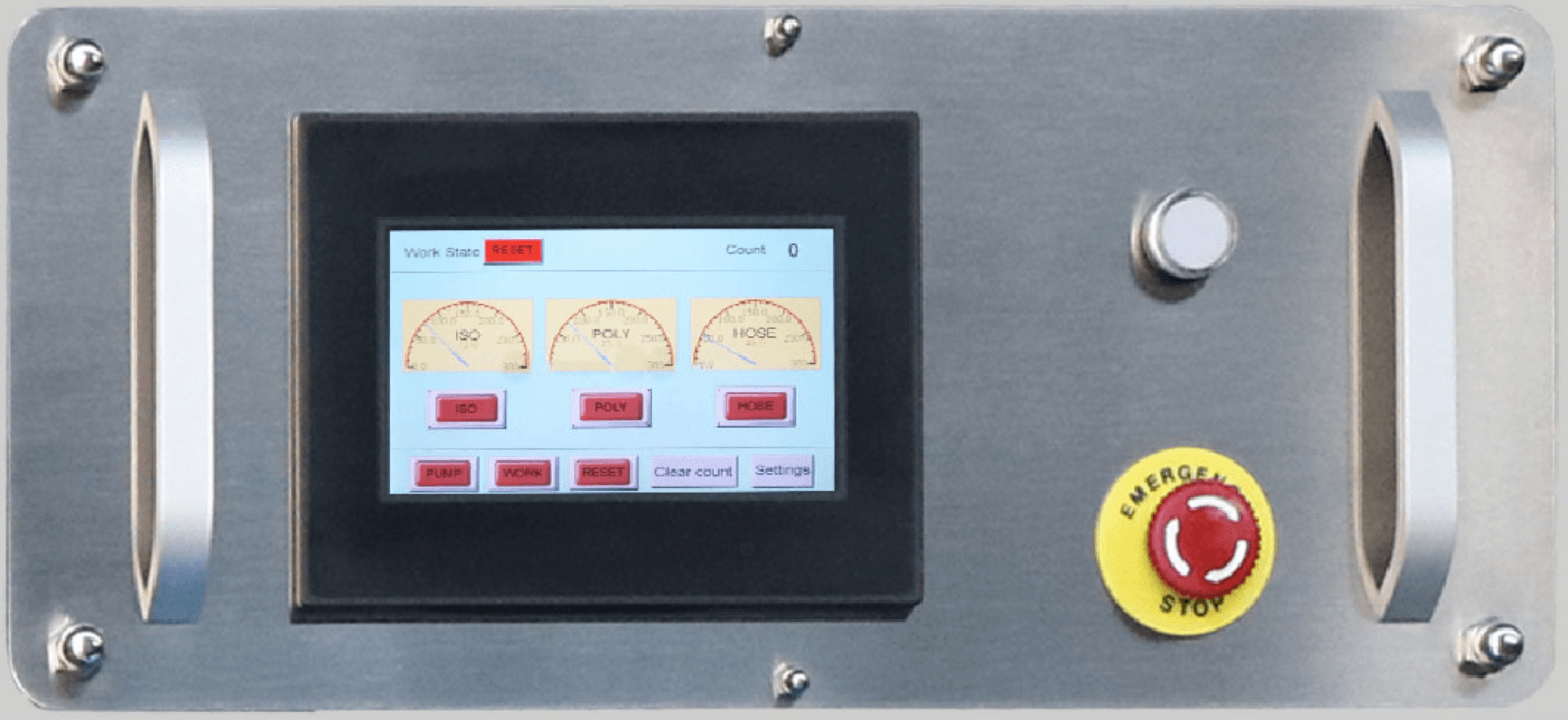

01 Control panel
Touch screen control panel for quick and easy selection and control of all working parameters. An advanced alarm system alerts you to any errors during the production process to ensure the correct use of the product.


  • Touch screen

  • Professional software

  • Comprehensive control

  • Fault Alarm

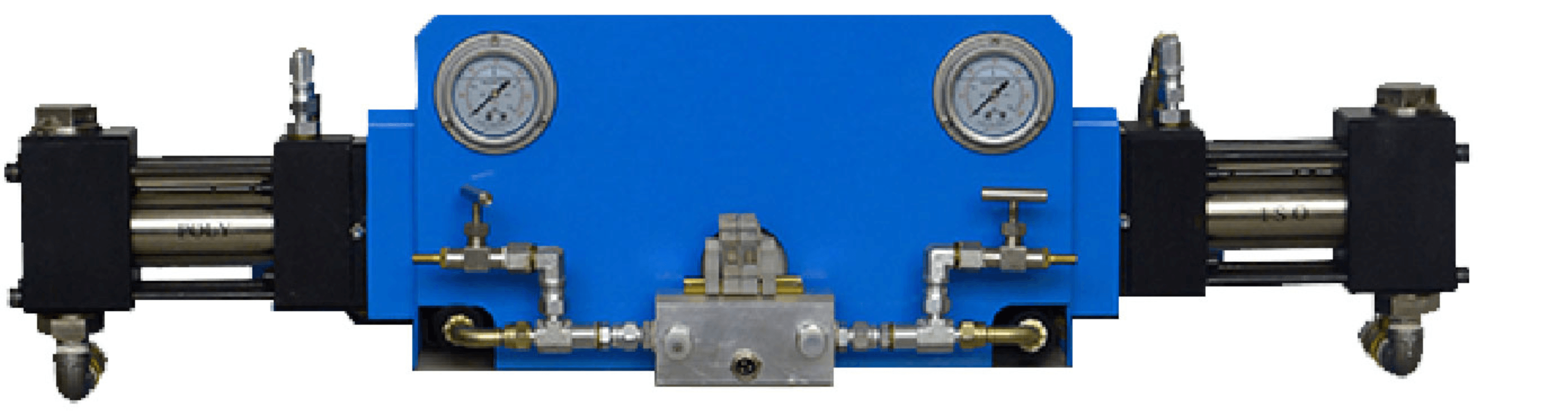

02 Proportioning pumps
Double-acting hydraulic cylinders drive two directly opposing chemical proportioning pumps, eliminating asymmetric loading and ensuring long pump seal life, while ensuring constant, stable pressure for perfect chemical mixing.


  • Hydraulic drive

  • Pressure stabilization

  • Innovative concept

  • Different volumes


03 Hose heating system
Designed with a 3000W isolating transformer, the maximum heating distance is 94 meters. Copper resistance elements are evenly distributed around the hose to precisely and solely control the applied temperature of the hose, avoiding the concentration of heat that occurs in traditional hose manufacturing.


  • 3000W isolation transformer

  • Heating distances up to 94 meters

  • Perfect mixing

  • Precise temperature control


04 Heating system
Consists of two independent hydraulic and electrically independent modular heaters. Each heater contains 4 x 1500W heating elements with a total power of 6000W per side and has the necessary control and safety features to ensure accurate and reliable operation. The heaters are specially designed to allow for a 50°C temperature differential, enabling them to achieve an application temperature of 90°C at normal ambient temperature conditions.



  • Two hydraulic and electric heaters

  • 1500W x 4 heating elements

  • 6000W per side

  • Temperature difference 50°C, 90°C (application temperature up to 90°C under normal ambient temperature conditions)
