High-end hydraulic polyurethane sprayer FD-511

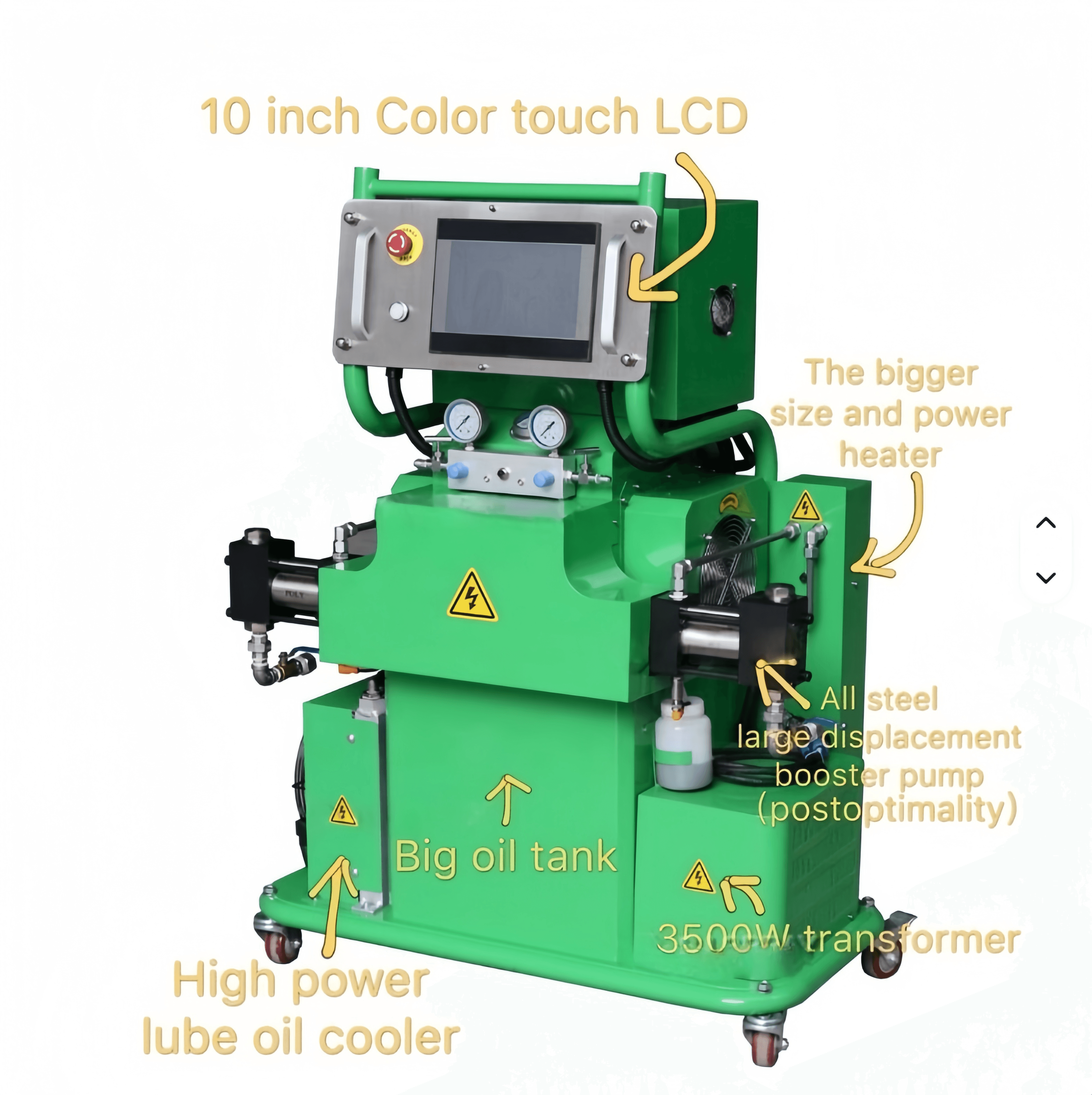

FD-511 Hydraulic Polyurea Spray Machine

The FD-511 is a high-performance hydraulic polyurea spray machine designed for dual-component materials. It combines advanced hydraulic power with intelligent temperature control to ensure precise mixing and stable performance under demanding conditions.
Whether applied in industrial anti-corrosion, waterproofing, flooring, roofing, storage tanks, or tunnels, the FD-511 provides consistent spray quality, reliable ratio control, and high operational efficiency—making it the ideal choice for professional applicators.

Main Heating System

The FD-511 is equipped with two independent block heaters featuring a seal-free design for higher reliability and easier maintenance.
This dual heating system allows materials to reach the required temperature quickly and evenly, maintaining ideal viscosity and ensuring excellent mixing and spray quality.

Hydraulic Proportioning Pump System

The unit adopts a double-acting piston proportioning pump, with each pump driven independently by a hydraulic cylinder.
This design ensures an accurate 1:1 ratio under any pressure condition. The hydraulic system offers high stability and low failure rates, with a maximum working pressure of 25 MPa and a maximum output of 24 kg per minute, suitable for continuous heavy-duty operation.

Recirculation System

The FD-511 features a dual-component recirculation system that rapidly heats and maintains material temperature during start-up and temporary shutdowns.
Equipped with convenient return valves, operators can easily perform recirculation operations, significantly reducing waiting times and improving work efficiency.

Central Control System

The machine is equipped with an industrial-grade central processor (CPU) that monitors and adjusts all operational parameters through software control.
An 8-inch touch-screen PLC interface allows operators to set and observe real-time system data with ease. The CPU automatically corrects any parameter deviations, ensuring stable and reliable operation at all times.

Key Advantages

1. High efficiency — Operating efficiency exceeds 60%, compared to about 20% for pneumatic machines.

2. Hydraulic drive — More stable, fewer failures, and longer service life.

3. High output pressure — Up to 25 MPa, providing consistent and fine atomization.

4. Built-in protection — Soft-start design and automatic pressure relief valve prevent overpressure damage.

5. International-quality components:

   • Electrical components, sensors, seals: Made in Germany

   • Proportioning pumps: Made in Japan

   • Solenoid valves: Made in Italy

6. Energy efficient — Requires only a 0.25 m³/min air compressor, reducing overall workload.

7. Smart monitoring — 8-inch PLC touch screen for real-time operation display and simple control.
