220V Single Phase Electric Sprayer FD-2A

Important attributes

Raw material viscosity range (at operating temperature)

200 - 1000CPS

Maximum Fluid Temperature

0 - 88 °C (190 °F)

maximum output

3 - 9kg/min

Maximum heated hose length

45 meters

Single heater power

3000W×2

Video Factory Inspection

available

Mechanical test report

available

warranty period

biennial

core component

Bearings, Motors, Pumps, Gears, PLC, Others, Pressure Vessels, Engines, Gearboxes

standard configuration

main frame

1 set

Spray gun (P2 type)

1 set

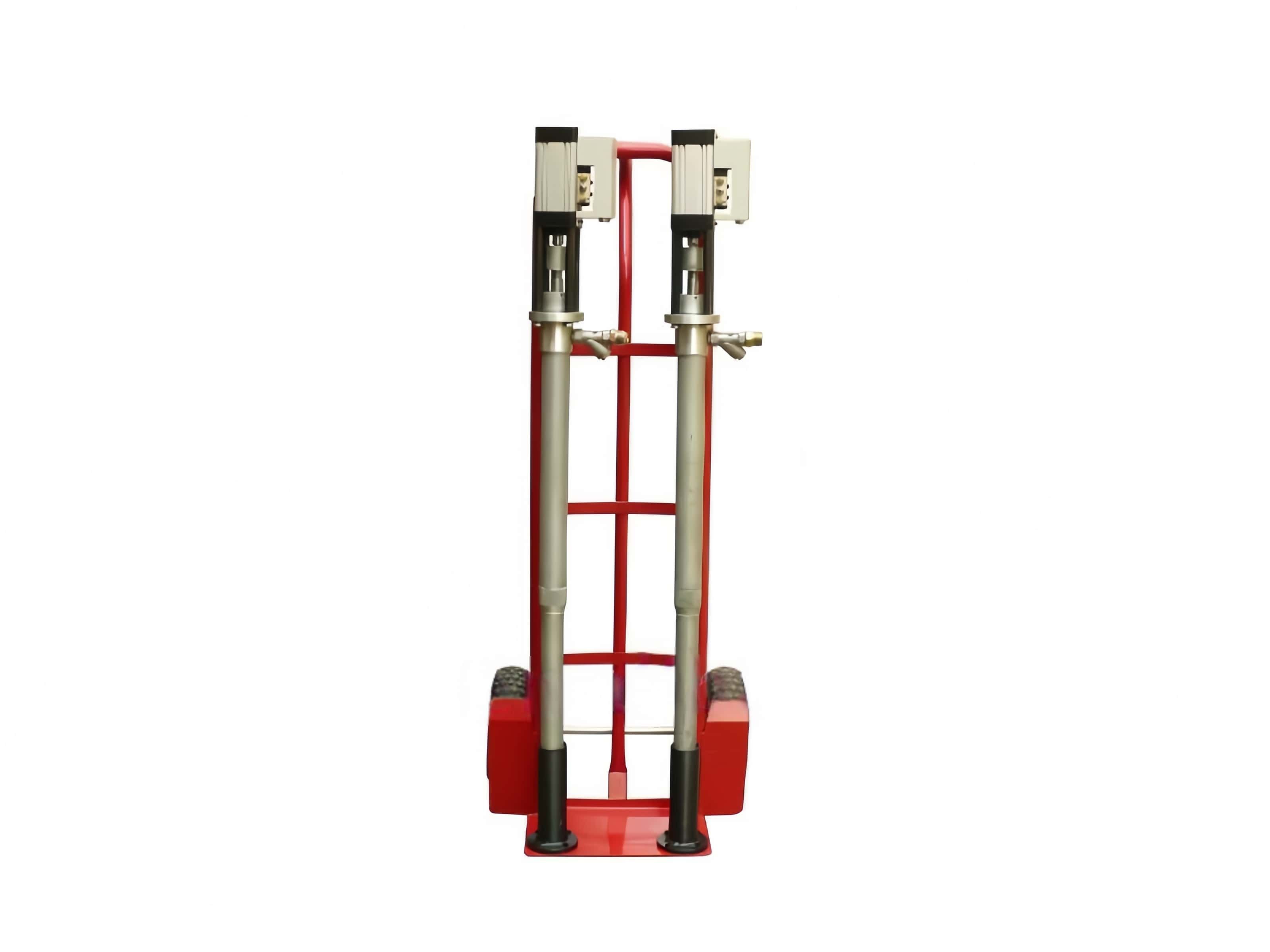

transfer pump

2 sets (E10HP not included)

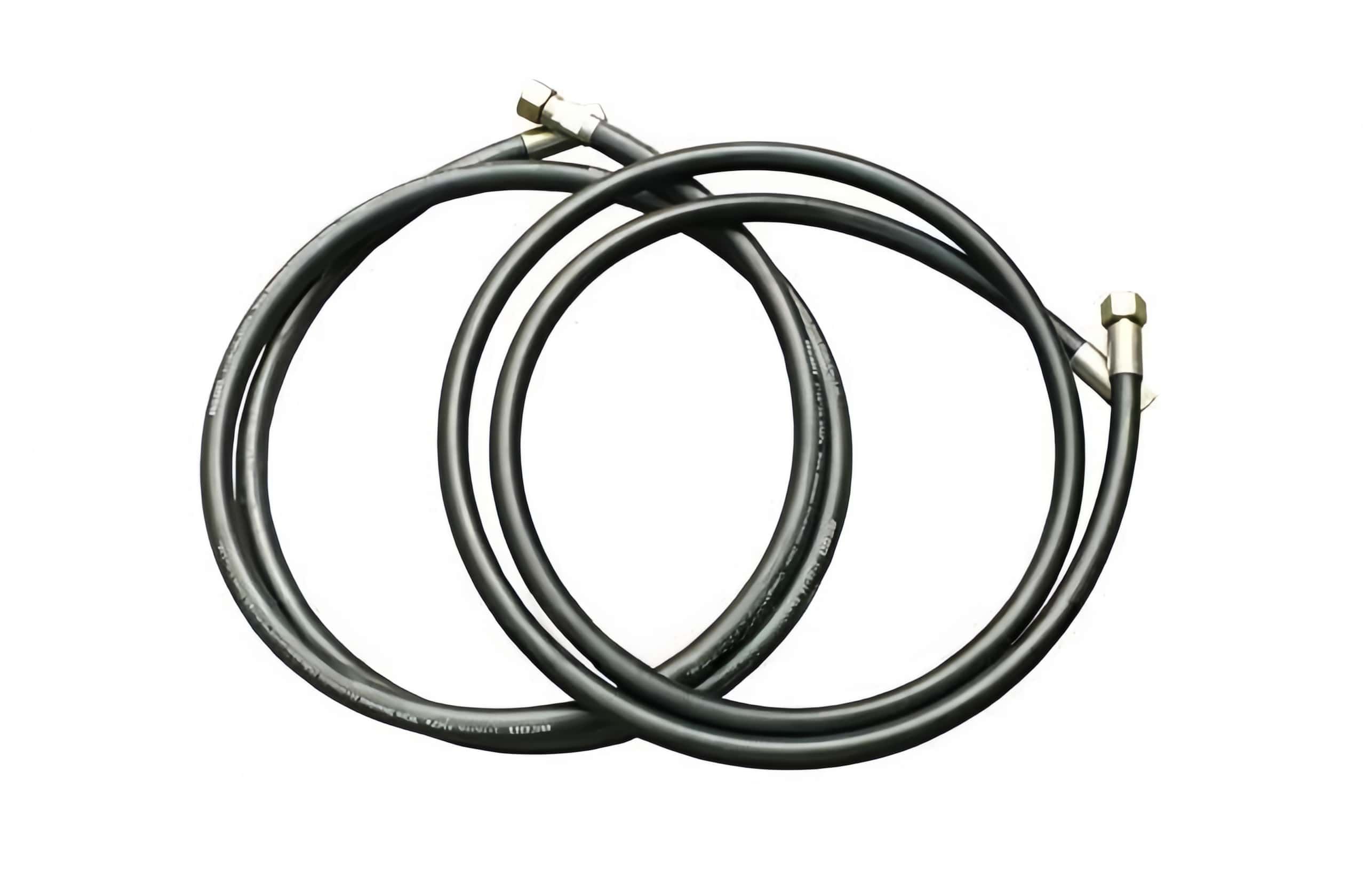

Heated hoses

15m (49.2ft)

Supply hose (from transfer pump to machine)

2 (1.5 m)

Whip Hose

1 root

air duct

1 set

Tools and spare parts

1 set

English User Manual

1 set

With the progress of human society, the demand for proportional fixed spraying equipment for polyurethane has increased dramatically. We develop and manufacture the proportional fixed electric spraying equipment FD-2A. this is a motorized, compact and flexible equipment that can be used asa foam insulation sprayer, a
