Electric polyurethane foam machine with bucket FD-2F
Powerful motorized polyurethane and polyurea spraying machine with charging bucket
Maximum working pressure:17MPa (170 bar)
input voltage:110V/220V single-phase, 220V three-phase, 380V three-phase
power (output):10KW
maximum output:2 - 12kg/min
Min. Order:1 pieces
Product Details
Important attributes
Video Factory Inspection
available
Mechanical test report
available
warranty period
biennial
Weight (KG)
150 KG
place of origin
Shandong, China
Dimensions (L×W×H)
730mm * 735mm * 1132mmmm
Viscosity range of raw materials
200 - 1000CPS
Single heater power
4500W×2
Maximum heated hose length
Standard 45 meters (customizable to 90 meters)
air supply
≥0.25m³/min
standard configuration
hosts
1 set
Spray gun (P2 type)
1 set
transfer pump
2 sets
Heated hoses
15 meters (49.2 feet)
Supply hose (from transfer pump to mainframe)
2 (1.5 m)
Whip Hose
1 root
air duct
1 set
Tools and spare parts
1 set
English User Manual
1 set

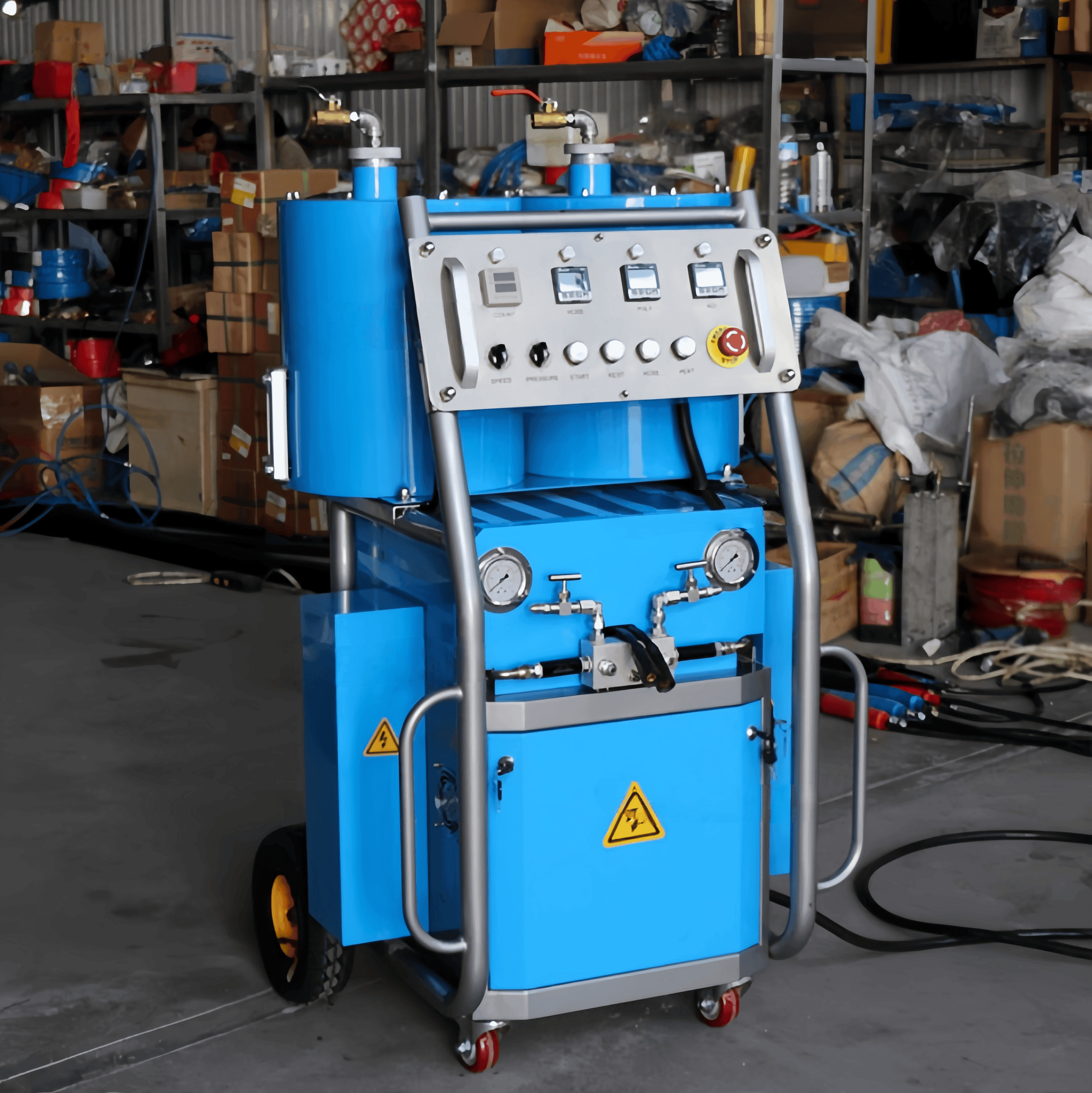

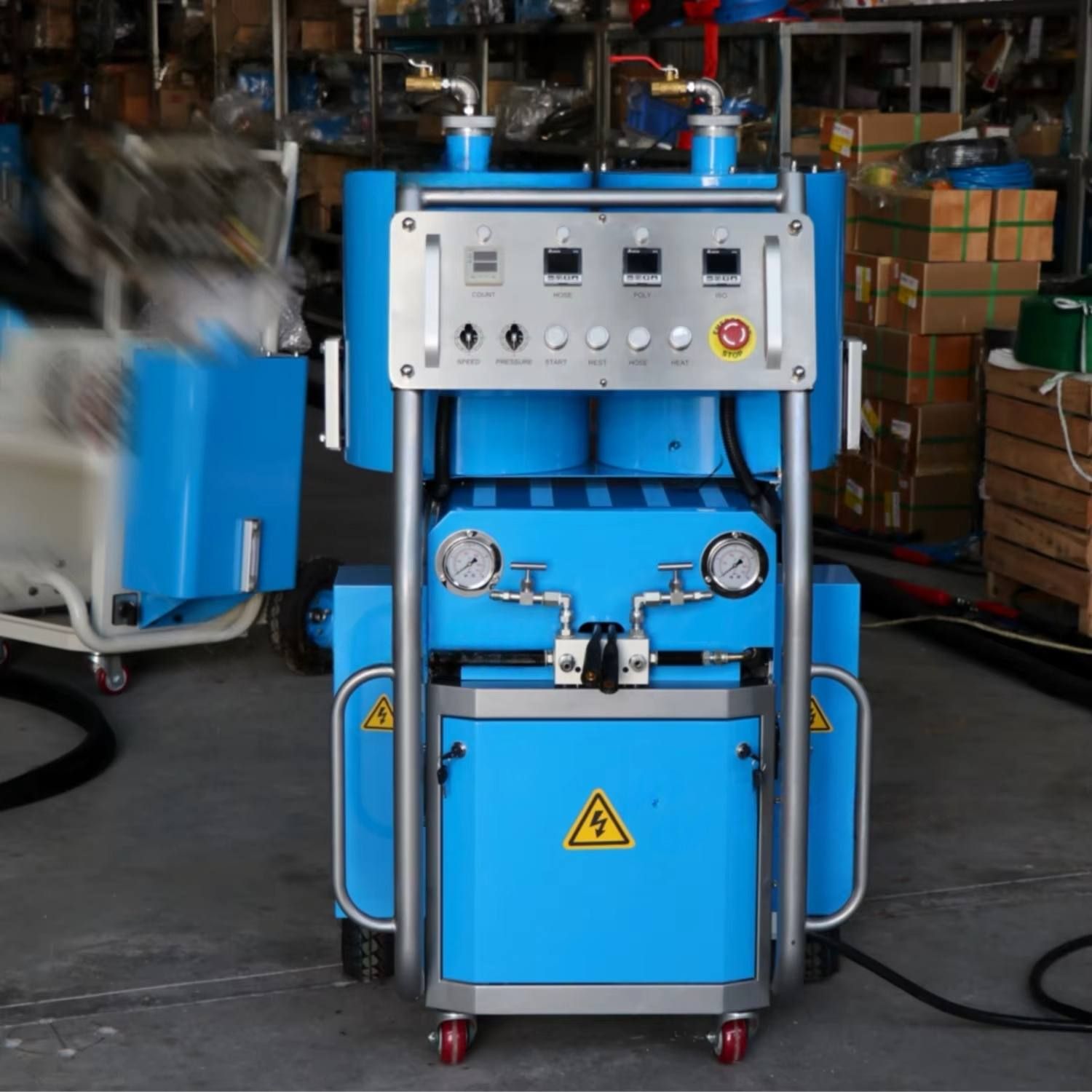

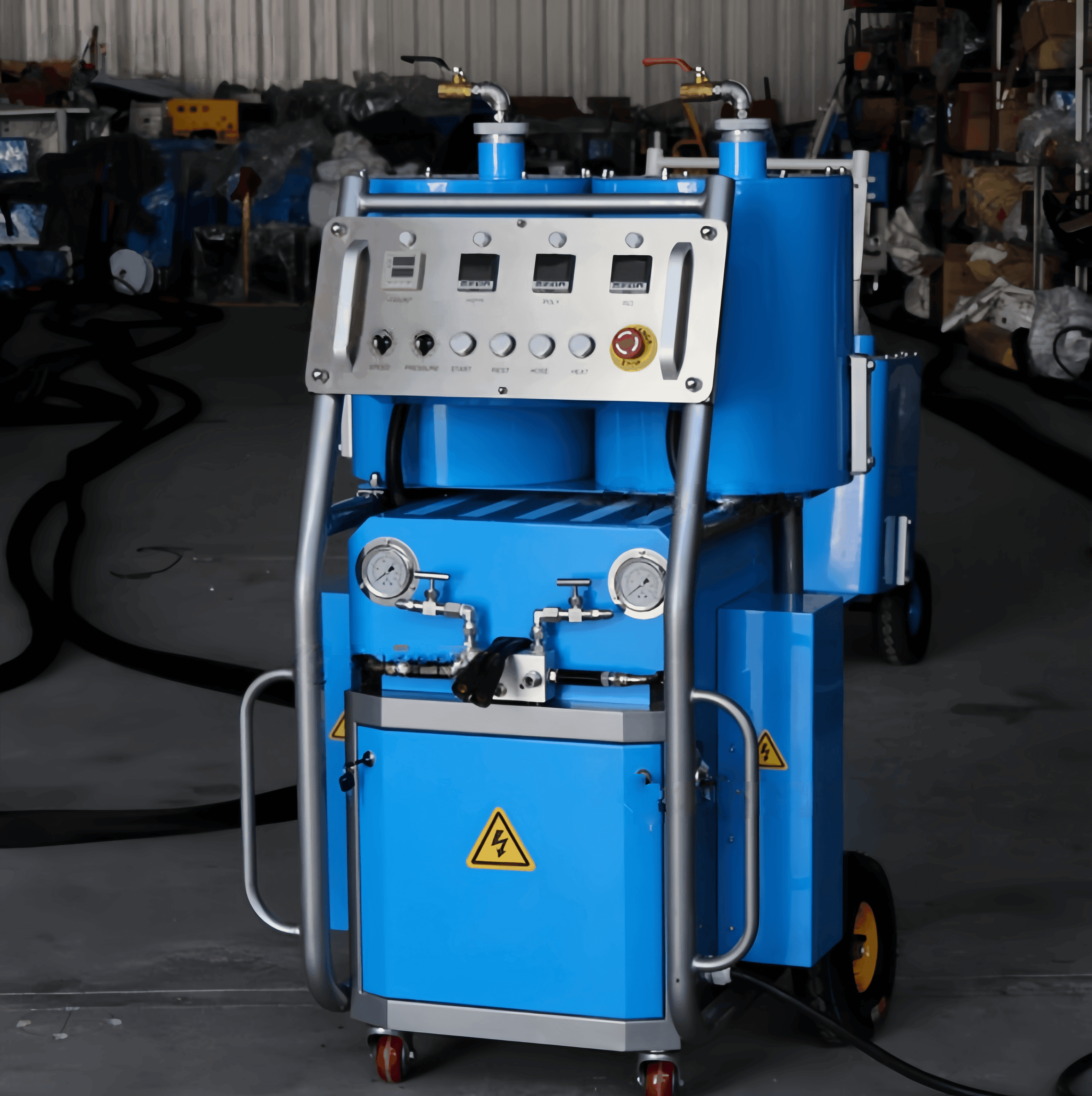

Motorized Polyurethane Spray Foam Injector FD-2F
The FD-2F is a motorized spraying system designed for polyurethane and polyurea applications, ideal for small to medium-sized projects. Equipped with a high-efficiency electric drive and intelligent control system, the FD-2F ensures stable proportioning, precise heating, and consistently high-performance spraying.
Advanced Operator Interface
- 10-inch LCD touchscreen for intuitive operation and navigation
- One-screen access to all major spray functions, reducing complexity
- Multiple temperature control modes to adapt to varying climates and jobsite conditions
Stabilized Proportioning & Mixing System
- Differential pressure alarm system to continuously maintain A/B material balance
- Accurate 1:1 fixed ratio for stable, consistent spray quality
- Optimized material mixing for fewer defects and smoother finishes
Efficient Heating & Hose Control
- High-powered 6000W heater for fast and stable material heating
- Standard 15m heated hose, extendable up to 90m
- Independent hose temperature control to keep material within the 200–1000 CPS viscosity range
Electrical & Safety Design
- Compatible with 230V (single/three phase) and 400V (three phase) power sources
- Robust electrical system designed for long-term reliability
- Integrated pipeline voltage protection and high-efficiency heating panels for safe, durable performance
Compact & Easy to Maintain
- Small footprint for easy transport and space-saving installation
- Self-cleaning spray gun reduces clogging and downtime
- Easy-to-replace components minimize maintenance cost and time
- OEM/LOGO customization available to support brand differentiation
Key Advantages
Energy Saving – Mechanical drive efficiency >96%, reducing energy consumption
Cost-Effective – Operates with a small 0.25m³/min air compressor
Durability – Imported electronic components and seals ensure reliability
Versatility – Adjustable flow rate and pressure (12 levels) for different spraying and injection needs
Low Noise – Quiet operation suitable for residential and indoor projects
