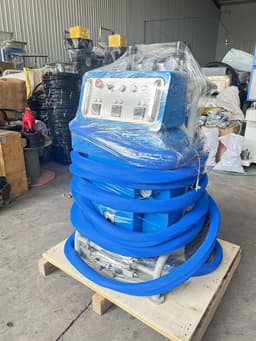

110V Single Phase Pneumatic Sprayer XL-411A
Pneumatic polyurethane spraying/foaming/injection machines, which are mainly exported to Saudi Arabia, Russia and Mexico
input voltage:110V/220V/380V
Overall power (kW):8KW
Maximum working pressure:17MPa (170 bar)
Sample Price:USD $2800-3200
Min. Order:1 pieces
Product Details
Important attributes
Video Factory Inspection
available
Mechanical test report
available
warranty period
biennial
Weight (KG)
250 KG
place of origin
Shandong, China
Dimensions (L×W×H)
110*87 * 136cm
core component
Bearings, motors, pumps, gears, PLC, pressure vessels, engines
Provide after-sales service
Video Technical Support
accreditation
ce
Viscosity range of raw materials
200-1000cps (at operating temperature)
Maximum working pressure
17MPa (170 bar)
Single heating power
3000W×2
maximum output
2 - 9kg/min
air supply
0.9m³/min
standard configuration
hosts
1 set
Spray gun (P2 type)
1 set
transfer pump
2 sets
Heated hoses
15m (49.2ft)
Supply pipe (from transfer pump to mainframe)
2 (1.5 m)
Whip Hose
1 root
air duct
1 set
Tools and spare parts
1 set
English User Manual
1 set
Packaging and shipping information
sales unit
Single item
port of embarkation
Qingdao
Packaging Details
in wooden case
Advantages of XL-411A Polyurethane Sprayer.
1.Equipped with a return valve, it is very convenient for the operator to recycle the chemical. During cold winter months, the machine can quickly preheat foam chemicals to help save time and improve spraying and foaming results.
2. Heated hoses are commonly used on Graco machines and feature internal heating and low voltage current to maximize operator safety.
3. Fahrenheit and Celsius displays for easy viewing in different regions of the world.
One machine for two purposes.
This machine is mainly used for polyurethane spraying construction, but also suitable for polyurethane pouring/injection and foaming construction.

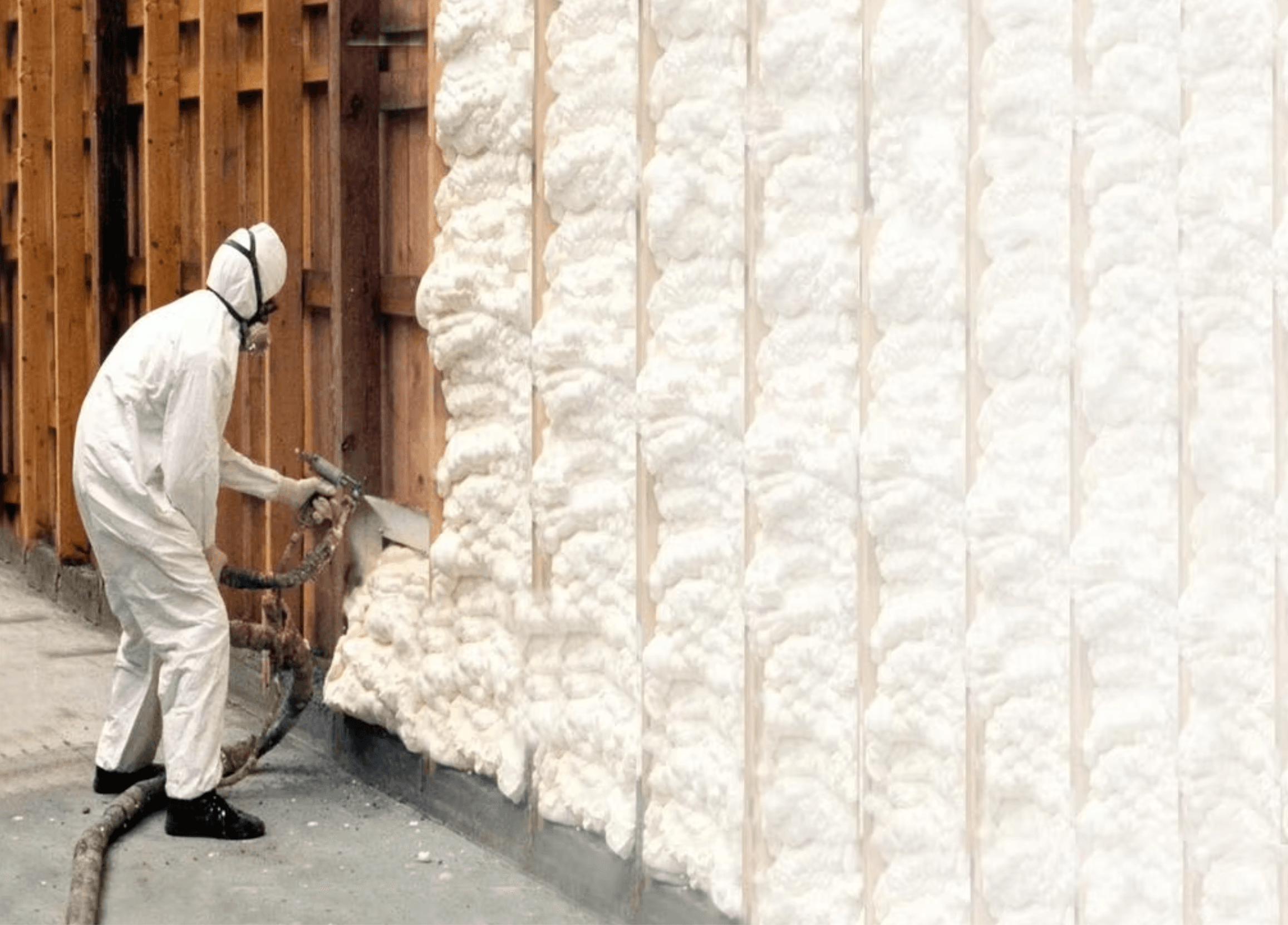

Polyurethane spraying: cold storage, roofing, light steel house, workshop, mobile house, tanks, outer wall, inner wall, cabin etc. heat insulation and soundproof/acoustic filling.
